4열 원통형 롤러 베어링

홈 / 베어링 / 원통형 롤러 베어링 / 4열 원통형 롤러 베어링

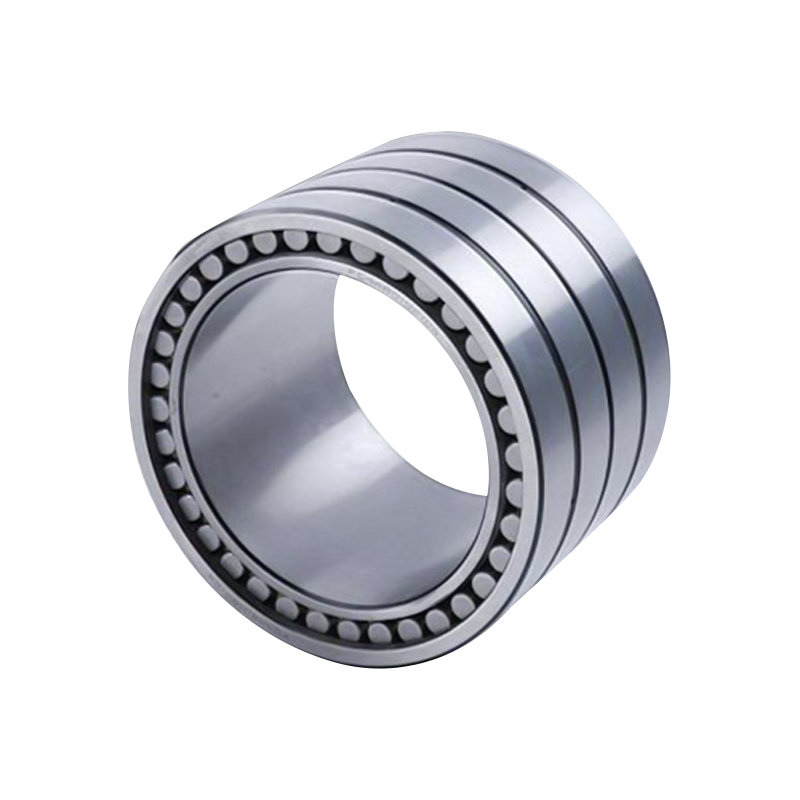

4열 원통형 롤러 베어링

4열 원통형 롤러 베어링은 극도로 무거운 레이디얼 하중을 처리하도록 특별히 설계된 고용량 정밀 베어링입니다. 4열 롤러 배열은 균일한 하중 분포와 더 높은 강성을 보장하므로 중장비 및 고하중 산업용 응용 분야에 중요한 구성 요소입니다.

Contact Us 문의하기
PREV：복열 원통형 롤러 베어링 다음：원통형 롤러/니들 스러스트 베어링
  • 사양
  • 문의하기
주요 치수 기본 정격하중 동적 정적 질량 베어링 번호
d[mm] D[mm] B[mm] C[mm] C[kN] C0[kN] kg
127 174.65 150.812 150.812 702 1188 10.6 BC4-0093
145 210 155 155 882 1404 18 BC4-0101
145 225 156 156 990 1467 23.7 BC4-0105
150 230 156 156 1008 1494 24.1 BC4-0096
160 230 168 168 1008 1980 23.5 315189A
160 230 168 168 1161 1980 23.8 BC4-0103
160 230 130 130 868.5 1206 17.3 BC4-0108
165.1 225.45 168.3 168.3 990 2016 19.8 315642/VJ202
165.1 225.45 168.3 168.3 1125 2016 20 BC4-0111
170 230 160 160 1233 2124 18.3 BC4-0118
170 240 130 130 1026 1647 19 BC4-0119
180 260 168 168 1404 2250 30.1 BC4-0114
190 260 168 168 1287 2340 26.7 BC4-0098
190 270 200 200 1620 2835 37.2 BC4-0109
190 280 200 200 1872 2925 41.5 BC4-0116
200 270 200 200 1530 2880 33 BC4-0051
200 280 200 200 1674 3015 39.6 BC4-0092
200 280 170 170 1530 2700 33.4 BC4-0095
200 290 192 192 1737 2880 43 BC4-0106
200 270 170 170 1287 2430 28.5 BC4-0113
220 310 225 225 2052 3645 53.8 BC4-0097
220 310 192 192 1710 3195 49 BC4-0117
230 330 206 206 2088 3600 58.6 BC4-0112
240 330 220 220 1944 3870 58.2 BC4-0099
260 370 220 220 2430 4185 77.9 BC4-0110
280 390 275 275 3375 6255 102 BC4-0100
280 390 220 220 2520 4500 87.2 BC4-0107
280 420 250 250 3321 5895 133 NNUD 6056 ECMAS/P53
300 420 300 300 3960 7470 130 BC4-0094
300 420 300 300 3960 7470 134 BC4-0124
340 450 250 250 2295 5400 115 BC4-8050
340 500 370 370 4707 10620 260 BC4B 322261/HB1
350 500 410 410 5247 12330 285 BC4B 322777/HB1
350 520 300 300 4212 8100 220 BC4B 326909 A/HA3
350 520 300 300 4212 8100 220 BC4B 326909/HA3
355.6 482.6 269.87 269.87 2673 5760 150 BC4-8022/HA1
356.67 550 400 400 4752 13500 335 BC4B 457939 VAA
360 500 250 250 3519 6615 145 BC2B 320075/VJ202
360 500 250 250 3960 7650 160 BC2B 322217/VJ202
380 540 400 380 5445 12600 300 BC4B 320989/HA3
380 560 325 325 4707 9540 270 BC4B 322264/HB1
400 590 440 440 7128 14940 415 315802/VJ202
400 560 300 300 4212 9180 245 BC4-8059
420 600 440 440 6489 15840 400 313513
420 580 320 320 4212 9720 250 313555 B/VJ202
431.5 571.5 310 310 4014 9180 200 BC4-8037/HA1VA907
431.5 571.5 300 300 4014 9180 210 BC4B 326361 B/HA1
440 660 340 340 6489 12330 436 635043
450 590 300 300 3519 10800 245 315811E
460 650 424 424 7425 16470 454 315196A
460 650 460 424 7029 16470 490 BC4B 322993 A/HA7
475 600 392 392 4950 13140 240 BC4-8003/HA1VA907
475 600 368 368 4950 13140 235 BC4B 326261/HA1
480 680 420 420 8217 17370 496 319320
487.98 637 350 350 5796 13770 300 BC2B 326196/HA1VJ202
500 670 450 450 7425 19800 460 316083A
500 650 260 260 3960 9180 225 319254/VJ202
500 680 450 450 7425 19800 500 BC4B 316515
500 670 480 450 7425 19800 485 BC4B 322039/HA1
500 720 400 400 7722 15840 544 BC4B 322066
500 738 500 500 9720 20880 735 BC4B 326853/HB1
510 760 550 550 10890 23850 950 BC4-8007/HB1
510 730 520 520 9180 19800 750 BC4-8009/HB1
510 680 500 500 8712 23400 522 BC4B 319411
529.91 870 670 670 15120 30150 1660 312844/VJ202
536.176 762.03 558.8 558.8 10260 26100 840 313535D
550 740 510 510 9900 24300 630 316691
556 800 580 580 9450 22950 900 BC4-8046/HB1
559.84 920 710 710 18090 40950 2000 313189A
560 820 600 600 12780 30600 1080 BC4B 322930/HA4
600 820 575 575 12600 32400 962 315175C
600 870 578 540 11880 28350 1150 BC4B 322497/HA4
606.667 920 640 640 14850 40500 1525 315526
620 820 475 475 9090 23850 700 BC4-8041/HA4
633.334 960 680 680 15120 40500 1730 BC4B 457969
660 820 440 440 7281 20520 514 239509 FA
750 1090 750 750 19440 45900 2420 BC4-8066/HA3
759 1210 740 740 22950 76500 3480 313685B
760 1080 790 790 21420 58950 2440 312979D
780 1070 780 780 21780 54900 2182 BC4-8015/HB1
820 1100 745 720 19080 51300 2000 BC4B 316341/HA4
850 1150 840 840 24750 67500 2570 315826B
850 1180 850 850 25290 66150 2900 BC4-8021/HB1
900 1280 780 780 25740 57600 3320 BC4-8067/HA3
937.5 1270.25 825.5 825.5 25290 74700 3160 315265
1040 1440 1000 1000 34200 83700 5100 BC4-8062/HA1
1300 1655 890 880 36180 109800 4800 BC4-8016/HA4
1350 1765 1360 1360 36180 109800 9100 BC4-8029/HA4
1400 1900 1360 1360 55440 164700 11300 BC4-8005/HA4
1400 1780 1200 1200 47070 146700 7510 BC4-8042/HA4
