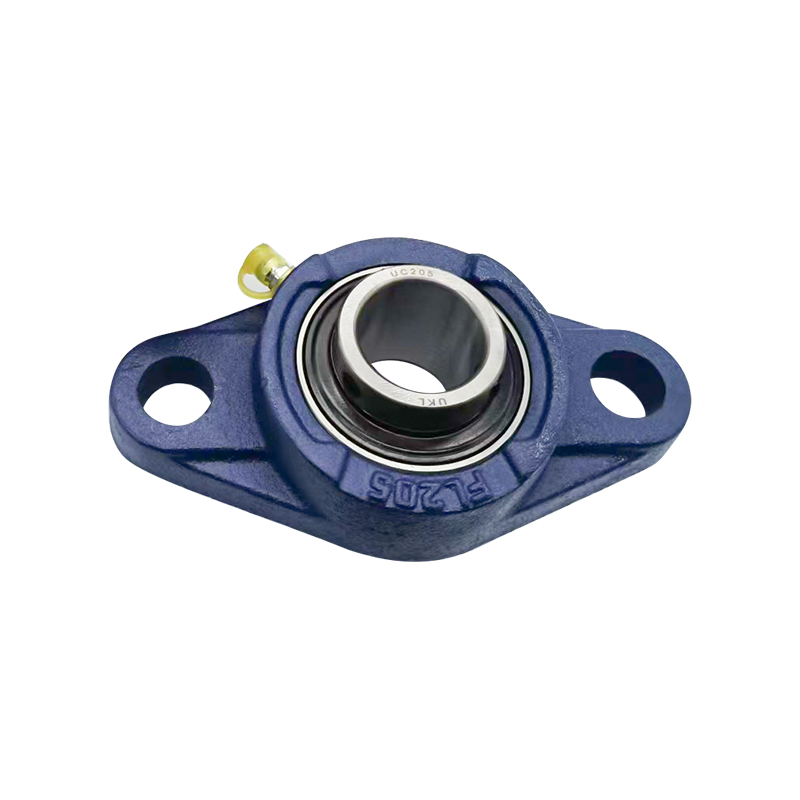

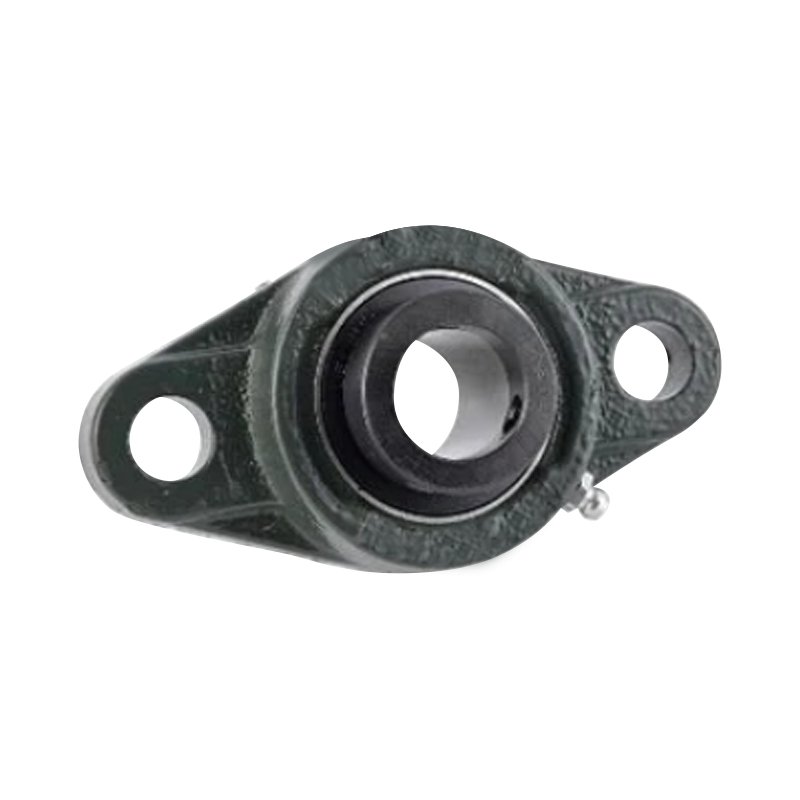

2 볼트 플랜지 베어링

UCFL 시리즈 2볼트 플랜지 베어링 유닛은 장착형 볼 베어링 유닛의 한 가지 설계로, UCFL 하우징과 UC, NA, UE, UK, SB 유형 필로우 블록 베어링, 고정 나사 및 편심 잠금 장치로 구성됩니다. FL 하우징의 재질은 주철, 주강, 플라스틱 및 스테인레스 스틸 디자인이 될 수 있으며 각 하우징과 인서트 베어링은 서로 교환될 수 있습니다.

문의하기

이전：4 볼트 플랜지 베어링 다음：테이크업 베어링 유닛

사양
문의하기

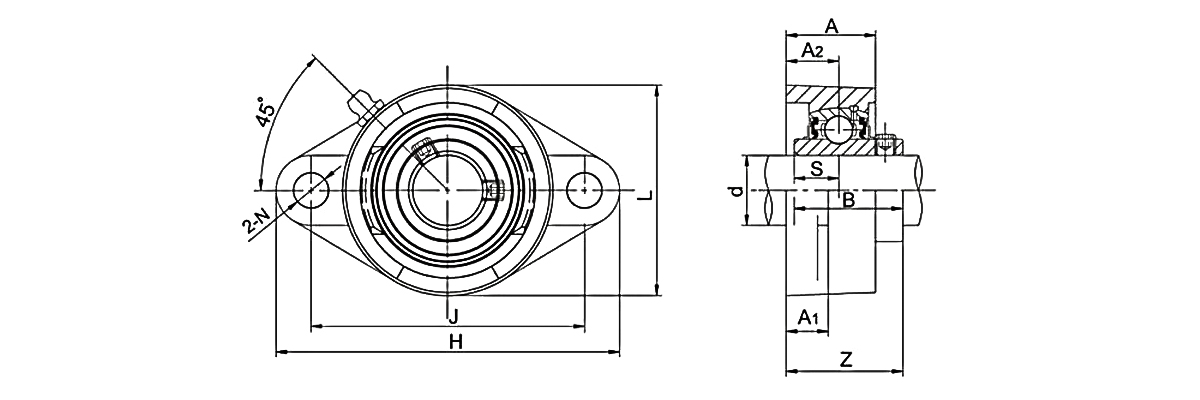

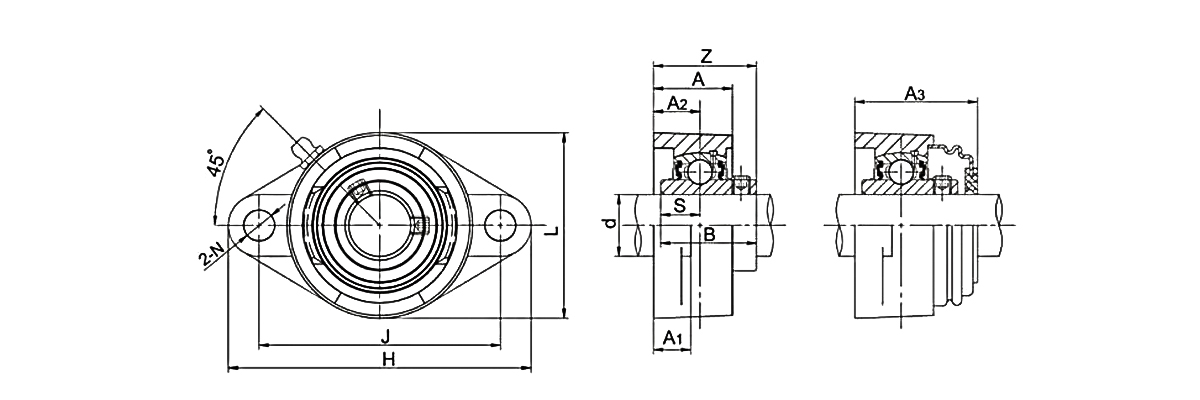

Unit No.	Shaft Dia		Dimensions(mm)											Bolt Size (mm)	Weight (kg)
	d		H	J	A2	A1	A	N	L	B	s	z	A3
	(in)	(mm)	H	J	A2	A1	A	N	L	B	s	z	A3
UCWFL201		12	97	76.5	15	11	25.5	11.5	55	27.4	11.5	30.9	-	M10	0.52
UCWFL202		15	97	76.5	15	11	25.5	11.5	55	27.4	11.5	30.9	-	M10	0.48
UCWFL203		17	97	76.5	15	11	25.5	11.5	55	27.4	11.5	30.9	-	M10	0.37
UCFL201		12	113	90	15	11	25.5	12	60	31	12.7	33.3	-	M10	0.51
UCFL201-8	1/2		113	90	15	11	25.5	12	60	31	12.7	33.3	-	M10	0.51
UCFL202		15	113	90	15	11	25.5	12	60	31	12.7	33.3	-	M10	0.51
UCFL202-9	9/16		113	90	15	11	25.5	12	60	31	12.7	33.3	-	M10	0.51
UCFL202-10	5/8		113	90	15	11	25.5	12	60	31	12.7	33.3	-	M10	0.51
UCFL203		17	113	90	15	11	25.5	12	60	31	12.7	33.3	-	M10	0.51
UCFL203-11	11/16		113	90	15	11	25.5	12	60	31	12.7	33.3	-	M10	0.51
UCFL204		20	113	90	15	11	25.5	12	60	31	12.7	33.3	38.2	M10	0.51
UCFL204-12	3/4		113	90	15	11	25.5	12	60	31	12.7	33.3	38.2	M10	0.51
UCFL205		25	130	99	16	13	27	16	68	34.1	14.3	35.8	40	M14	0.6
UCFL205-14	7/8		130	99	16	13	27	16	68	34.1	14.3	35.8	40	M14	0.6
UCFL205-15	15/16		130	99	16	13	27	16	68	34.1	14.3	35.8	40	M14	0.6
UCFL205-16	1		130	99	16	13	27	16	68	34.1	14.3	35.8	40	M14	0.6
UCFL206		30	148	117	18	13	31	16	80	38.1	15.9	40.2	44	M14	0.9
UCFL206-17	1-1/16		148	117	18	13	31	16	80	38.1	15.9	40.2	44	M14	0.9
UCFL206-18	1-1/8		148	117	18	13	31	16	80	38.1	15.9	40.2	44	M14	0.9
UCFL206-19	1-3/16		148	117	18	13	31	16	80	38.1	15.9	40.2	44	M14	0.9
UCFL206-20	1-1/4		148	117	18	13	31	16	80	38.1	15.9	40.2	44	M14	0.9
UCFL207		35	160	130	19	15	34	16	90	42.9	17.5	44.4	48.5	M14	1.2
UCFL207-20	1-1/4		160	130	19	15	34	16	90	42.9	17.5	44.4	48.5	M14	1.2
UCFL207-21	1-5/16		160	130	19	15	34	16	90	42.9	17.5	44.4	48.5	M14	1.2
UCFL207-22	1-3/8		160	130	19	15	34	16	90	42.9	17.5	44.4	48.5	M14	1.2
UCFL207-23	1-7/16		160	130	19	15	34	16	90	42.9	17.5	44.4	48.5	M14	1.2
UCFL208		40	175	144	21	15	36	16	100	49.2	19	51.2	55.1	M14	1.5
UCFL208-24	1-1/2		175	144	21	15	36	16	100	49.2	19	51.2	55.1	M14	1.5
UCFL208-25	1-9/16		175	144	21	15	36	16	100	49.2	19	51.2	55.1	M14	1.5
UCFL209		45	188	148	22	16	38	19	108	49.2	19	52.2	57	M16	1.9
UCFL209-26	1-5/8		188	148	22	16	38	19	108	49.2	19	52.2	57	M16	1.9
UCFL209-27	1-11/16		188	148	22	16	38	19	108	49.2	19	52.2	57	M16	1.9
UCFL209-28	1-3/4		188	148	22	16	38	19	108	49.2	19	52.2	57	M16	1.9
UCFL210		50	197	157	22	16	40	19	115	51.6	19	54.6	60	M16	2.2
UCFL210-30	1-7/8		197	157	22	16	40	19	115	51.6	19	54.6	60	M16	2.2
UCFL210-31	1-15/16		197	157	22	16	40	19	115	51.6	19	54.6	60	M16	2.2
UCFL210-32	2		197	157	22	16	40	19	115	51.6	19	54.6	60	M16	2.2
UCFL211		55	224	184	25	18	43	19	125	55.6	22.2	58.4	63	M16	3
UCFL211-32	2		224	184	25	18	43	19	125	55.6	22.2	58.4	63	M16	3
UCFL211-34	2-1/8		224	184	25	18	43	19	125	55.6	22.2	58.4	63	M16	3
UCFL211-35	2-3/16		224	184	25	18	43	19	125	55.6	22.2	58.4	63	M16	3
UCFL212		60	250	202	29	18	48	23	140	65.1	25.4	68.7	73.5	M20	4
UCFL212-36	2-1/4		250	202	29	18	48	23

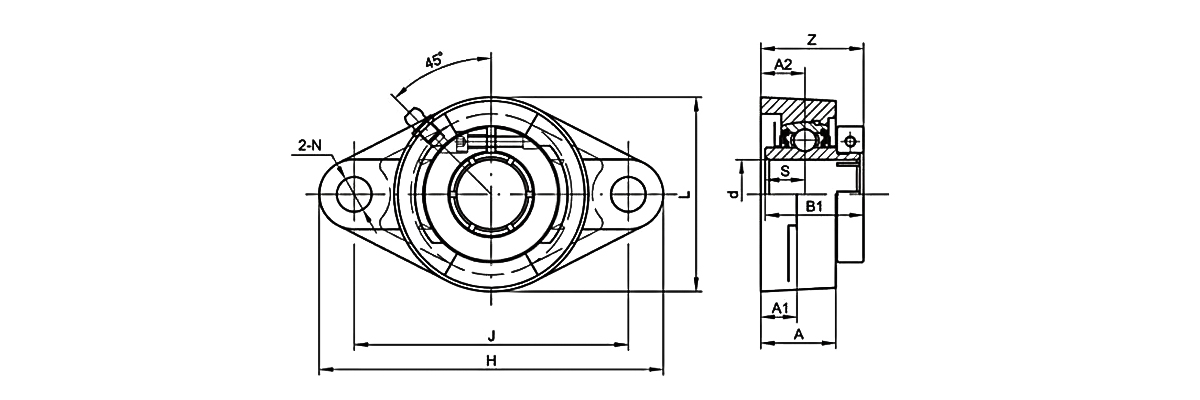

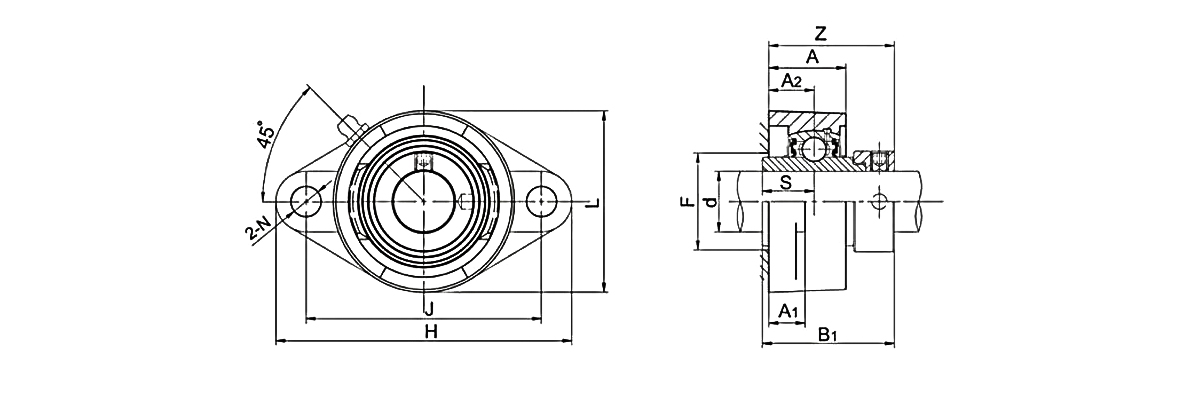

Unit No.	Shaft Dia		Dimensions (mm)											Bolt Size	Weight
	d		H	J	A2	A1	A	N	L	B1	s	z	F	Bolt Size	Weight
	(in)	(mm)	H	J	A2	A1	A	N	L	B1	s	z	F	(mm)	(kg)
NAFL201S		12	97	76.5	15	11	25.5	11.5	55	37.3	13.9	38.2	-	M10	0.48
NAFL201-8S	1/2		97	76.5	15	11	25.5	11.5	55	37.3	13.9	38.2	-	M10	0.48
NAFL202S		15	97	76.5	15	11	25.5	11.5	55	37.3	13.9	38.2	-	M10	0.48
NAFL202-10S	5/8		97	76.5	15	11	25.5	11.5	55	37.3	13.9	38.2	-	M10	0.48
NAFL203S		17	97	76.5	15	11	25.5	11.5	55	37.3	13.9	38.2	-	M10	0.48
NAFL203-11S	11/16		97	76.5	15	11	25.5	11.5	55	37.3	13.9	38.2	-	M10	0.48
NAFL201		12	113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL201-8	1/2		113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL202		15	113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL202-10	5/8		113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL203		17	113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL203-11	11/16		113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL204		20	113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL204-12	3/4		113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL205		25	130	99	16	13	27	16	68	44.4	17.5	42.9	36	M14	0.8
NAFL205-14	7/8		130	99	16	13	27	16	68	44.4	17.5	42.9	36	M14	0.8
NAFL205-15	15/16		130	99	16	13	27	16	68	44.4	17.5	42.9	36	M14	0.8
NAFL205-16	1		130	99	16	13	27	16	68	44.4	17.5	42.9	36	M14	0.8
NAFL206		30	148	117	18	13	31	16	80	48.4	18.3	48.1	42	M14	1.2
NAFL206-17	1-1/16		148	117	18	13	31	16	80	48.4	18.3	48.1	42	M14	1.2
NAFL206-18	1-1/8		148	117	18	13	31	16	80	48.4	18.3	48.1	42	M14	1.2
NAFL206-19	1-3/16		148	117	18	13	31	16	80	48.4	18.3	48.1	42	M14	1.2
NAFL206-20	1-1/4		148	117	18	13	31	16	80	48.4	18.3	48.1	42	M14	1.2
NAFL207		35	160	130	19	15	34	16	90	51.1	18.8	51.3	50	M14	1.6
NAFL207-20	1-1/4		160	130	19	15	34	16	90	51.1	18.8	51.3	50	M14	1.6
NAFL207-21	1-5/16		160	130	19	15	34	16	90	51.1	18.8	51.3	50	M14	1.6
NAFL207-22	1-3/8		160	130	19	15	34	16	90	51.1	18.8	51.3	50	M14	1.6
NAFL207-23	1-7/16		160	130	19	15	34	16	90	51.1	18.8	51.3	50	M14	1.6
NAFL208		40	175	144	21	15	36	16	100	56.3	21.4	55.9	55	M14	1.9
NAFL208-24	1-1/2		175	144	21	15	36	16	100	56.3	21.4	55.9	55	M14	1.9
NAFL208-25	1-9/16		175	144	21	15	36	16	100	56.3	21.4	55.9	55	M14	1.9
NAFL209		45	188	148	22	16	38	19	108	56.3	21.4	56.9	60	M16	2.3
NAFL209-26	1-5/8		188	148	22	16	38	19	108	56.3	21.4	56.9	60	M16	2.3
NAFL209-27	1-11/16		188	148	22	16	38	19	108	56.3	21.4	56.9	60	M16	2.3
NAFL209-28	1-3/4		188	148	22	16	38	19	108	56.3	21.4	56.9	60	M16	2.3
NAFL210		50	197	157	22	16	40	19	115	62.7	24.6	60.1	64	M16	2.6
NAFL210-30	1-7/8		197	157	22	16	40	19	115	62.7	24.6	60.1	64	M16	2.6
NAFL210-31	1-15/16		197	157	22	16	40	19	115	62.7	24.6	60.1	64	M16	2.6
NAFL211		55	224	184	25	18	43	19	125	71.4	27.8	68.6	71	M16	3.8
NAFL211-32	2		224	184	25	18	43	19	125	71.4	27.8	68.6	71	M16	3.8
NAFL211-34	2-1/8		224	184	25	18	43	19	125	71.4	27.8	68.6	71	M16	3.8
NAFL211-35	2-3/16		224	184	25	18	43	19	125	71.4	27.8	68.6	71	M16	3.8
NAFL212		60	250	202	29	18	48	23	140	77.8	31	75.8	78	M20	4.8
NAFL212-36	2-1/4		250	202	29	18	48	23	140	77.8	31	75.8	78	M20	4.8
NAFL212-38	2-3/8		250	202	29	18	48	23	140	77.8	31	75.8	78	M20	4.8
NAFL212-39	2-7/16		250	202	29	18	48	23	140	77.8	31	75.8	78	M20	4.8
NAFL213		65	258	210	30	22	50	23	153	85.7	34.1	81.6	85	M20	6
NAFL213-40	2-1/2		258	210	30	22	50	23	153	85.7	34.1	81.6	85	M20	6
NAFL214		70	265	216	31	22	54	23	160	85.7	34.1	82.6	91	M20	6.3
NAFL214-44	2-3/4		265	216	31	22	54	23	160	85.7	34.1	82.6	91	M20	6.3
NAFL215		75	275	225	34	22	56	23	165	92.1	37.3	88.8	96	M20	7.2
NAFL215-48	3		275	225	34	22	56	23	165	92.1	37.3	88.8	96	M20	7.2

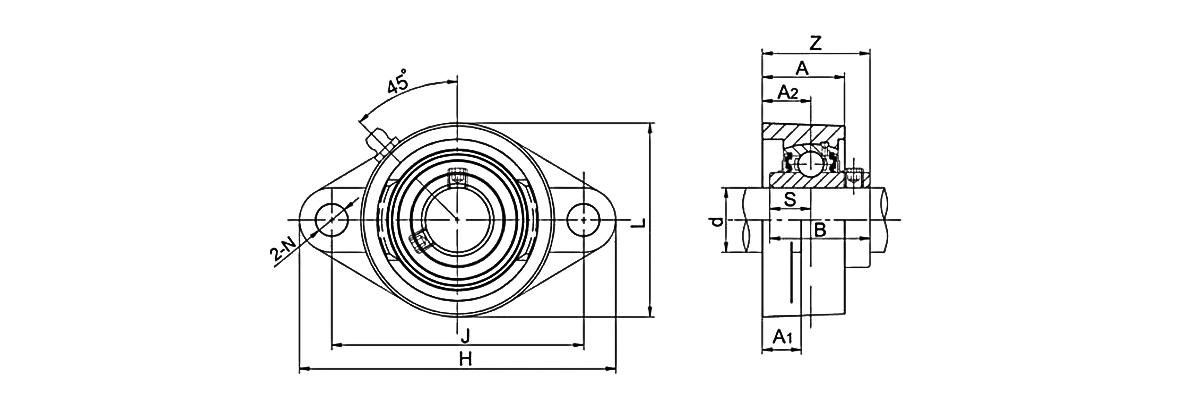

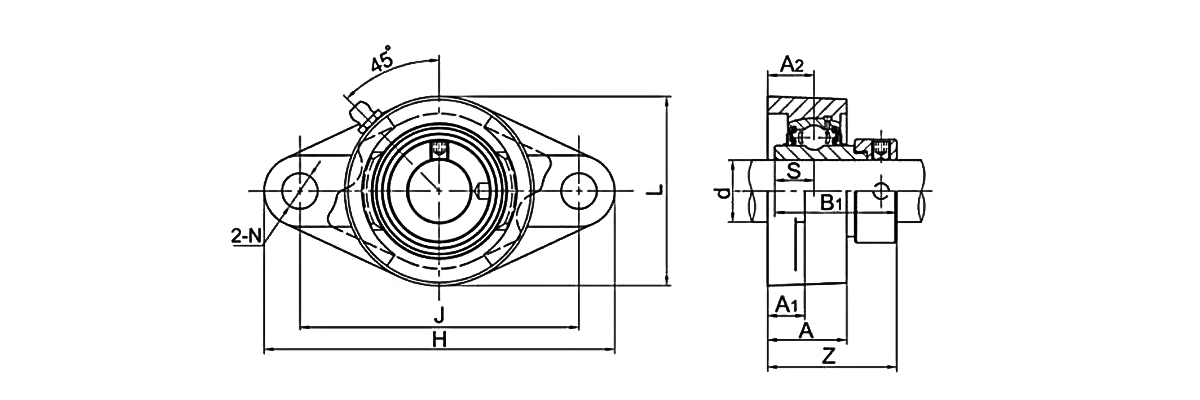

Unit No.	Shaft Dia		Dimensions(mm)										Bolt Size (mm)	Weight (kg)
	d		H	J	A2	A1	A	N	L	B1	S	Z
	(in)	(mm)	H	J	A2	A1	A	N	L	B1	S	Z
UEFL204		20	113	90	15	11	25.5	12	60	33	12.7	35.3	M10	0.47
UEFL204-12	3/4		113	90	15	11	25.5	12	60	33	12.7	35.3	M10	0.47
UEFL205		25	130	99	16	13	27	16	68	35.4	14.3	37.1	M14	0.64
UEFL205-14	7/8		130	99	16	13	27	16	68	35.4	14.3	37.1	M14	0.64
UEFL205-15	15/16		130	99	16	13	27	16	68	35.4	14.3	37.1	M14	0.64
UEFL205-16	1		130	99	16	13	27	16	68	35.4	14.3	37.1	M14	0.64
UEFL206		30	148	117	18	13	31	16	80	39.8	15.9	41.9	M14	0.95
UEFL206-17	1-1/16		148	117	18	13	31	16	80	39.8	15.9	41.9	M14	0.95
UEFL206-18	1-1/8		148	117	18	13	31	16	80	39.8	15.9	41.9	M14	0.95
UEFL206-19	1-3/16		148	117	18	13	31	16	80	39.8	15.9	41.9	M14	0.95
UEFL206-20	1-1/4		148	117	18	13	31	16	80	39.8	15.9	41.9	M14	0.95
UEFL207		35	160	130	19	15	34	16	90	43.9	17.5	45.4	M14	1.27
UEFL207-20	1-1/4		160	130	19	15	34	16	90	43.9	17.5	45.4	M14	1.27
UEFL207-21	1-5/16		160	130	19	15	34	16	90	43.9	17.5	45.4	M14	1.27
UEFL207-22	1-3/8		160	130	19	15	34	16	90	43.9	17.5	45.4	M14	1.27
UEFL207-23	1-7/16		160	130	19	15	34	16	90	43.9	17.5	45.4	M14	1.27
UEFL208		40	175	144	21	15	36	16	100	50.2	19	52.2	M14	1.62
UEFL208-24	1-1/2		175	144	21	15	36	16	100	50.2	19	52.2	M14	1.62
UEFL208-25	1-9/16		175	144	21	15	36	16	100	50.2	19	52.2	M14	1.62
UEFL209		45	188	148	22	16	38	19	108	50.2	19	53.2	M16	2.02
UEFL209-26	1-5/8		188	148	22	16	38	19	108	50.2	19	53.2	M16	2.02
UEFL209-27	1-11/16		188	148	22	16	38	19	108	50.2	19	53.2	M16	2.02
UEFL209-28	1-3/4		188	148	22	16	38	19	108	50.2	19	53.2	M16	2.02
UEFL210		50	197	157	22	16	40	19	115	52.6	19	55.6	M16	2.27
UEFL210-30	1-7/8		197	157	22	16	40	19	115	52.6	19	55.6	M16	2.27
UEFL210-31	1-15/16		197	157	22	16	40	19	115	52.6	19	55.6	M16	2.27
UEFL210-32	2		197	157	22	16	40	19	115	52.6	19	55.6	M16	2.27
UEFL211		55	224	184	25	18	43	19	125	56.6	22.2	59.4	M16	3.34
UEFL211-32	2		224	184	25	18	43	19	125	56.6	22.2	59.4	M16	3.34
UEFL211-34	2-1/8		224	184	25	18	43	19	125	56.6	22.2	59.4	M16	3.34
UEFL211-35	2-3/16		224	184	25	18	43	19	125	56.6	22.2	59.4	M16	3.34
UEFL212		60	250	202	29	18	48	23	140	66.6	25.4	70.2	M20	4.3
UEFL212-36	2-1/4		250	202	29	18	48	23	140	66.6	25.4	70.2	M20	4.3
UEFL212-38	2-3/8		250	202	29	18	48	23	140	66.6	25.4	70.2	M20	4.3
UEFL212-39	2-7/16		250	202	29	18	48	23	140	66.6	25.4	70.2	M20	4.3

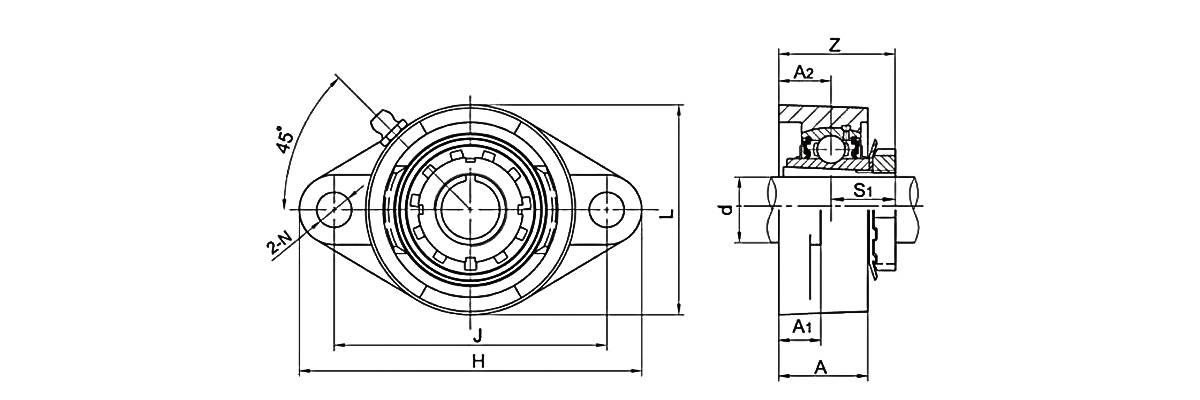

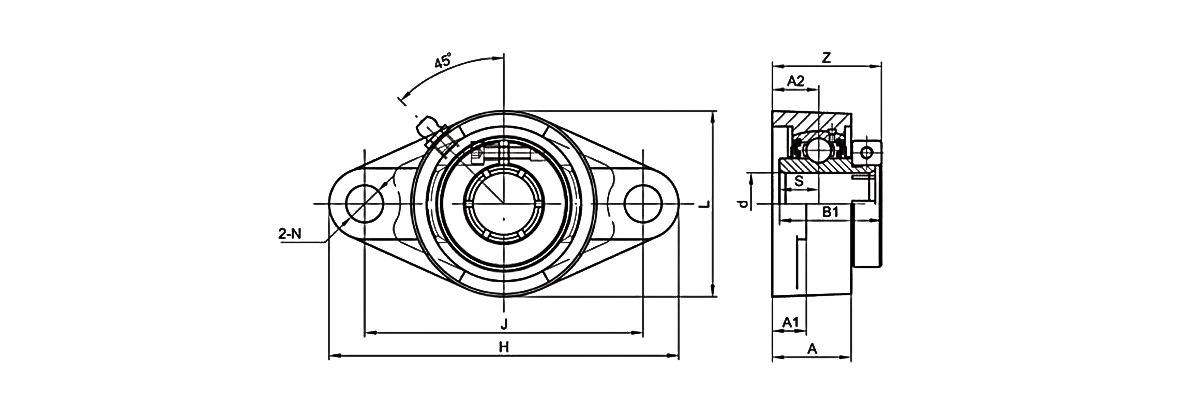

Unit No.	Shaft Dia		Dimensions (mm)									Bolt Size (mm)	Weight
	d		H	J	A2	A1	A	N	L	S1	z		(kg)
	(in)	(mm)	H	J	A2	A1	A	N	L	S1	z		(kg)
UKFL205 H2305		20	130	99	16	13	27	16	68	18.5	34.5	M14	0.6
UKFL205 HE2305	3/4		130	99	16	13	27	16	68	18.5	34.5	M14	0.6
UKFL206 H2306		25	148	117	18	13	31	16	80	20.5	38.5	M14	0.96
UKFL206 HS2306	7/8		148	117	18	13	31	16	80	20.5	38.5	M14	0.96
UKFL206 HA2306	15/16		148	117	18	13	31	16	80	20.5	38.5	M14	0.96
UKFL206 HE2306	1		148	117	18	13	31	16	80	20.5	38.5	M14	0.96
UKFL207 H2307		30	160	130	19	15	34	16	90	22.5	41.5	M14	1.3
UKFL207 HS2307	1-1/8		160	130	19	15	34	16	90	22.5	41.5	M14	1.3
UKFL207 HA2307	1-3/16		160	130	19	15	34	16	90	22.5	41.5	M14	1.3
UKFL208 H2308		35	175	144	21	15	36	16	100	24.5	45.5	M14	1.6
UKFL208 HE2308	1-1/4		175	144	21	15	36	16	100	24.5	45.5	M14	1.6
UKFL208 HS2308	1-3/8		175	144	21	15	36	16	100	24.5	45.5	M14	1.6
UKFL209 H2309		40	188	148	22	16	38	19	108	26	48	M16	2
UKFL209 HA2309	1-7/16		188	148	22	16	38	19	108	26	48	M16	2
UKFL209 HE2309	1-1/2		188	148	22	16	38	19	108	26	48	M16	2
UKFL210 H2310		45	197	157	22	16	40	19	115	27.5	49.5	M16	2.3
UKFL210 HS2310	1-5/8		197	157	22	16	40	19	115	27.5	49.5	M16	2.3
UKFL210 HA2310	1-11/16		197	157	22	16	40	19	115	27.5	49.5	M16	2.3
UKFL210 HE2310	1-3/4		197	157	22	16	40	19	115	27.5	49.5	M16	2.3
UKFL211 H2311		50	224	184	25	18	43	19	125	28.5	53.5	M16	3.3
UKFL211 HS2311	1-7/8		224	184	25	18	43	19	125	28.5	53.5	M16	3.3
UKFL211 HA2311	1-15/16		224	184	25	18	43	19	125	28.5	53.5	M16	3.3
UKFL211 HE2311	2		224	184	25	18	43	19	125	28.5	53.5	M16	3.3
UKFL212 H2312		55	250	202	29	18	48	23	140	31	60	M20	4
UKFL212 HS2312	2-1/8		250	202	29	18	48	23	140	31	60	M20	4
UKFL213 H2313		60	258	210	30	22	50	23	155	32	62	M20	5.1
UKFL213 HA2313	2-3/16		258	210	30	22	50	23	155	32	62	M20	5.1
UKFL213 HE2313	2-1/4		258	210	30	22	50	23	155	32	62	M20	5.1
UKFL213 HS2313	2-3/8		258	210	30	22	50	23	155	32	62	M20	5.1
UKFL215 H2315		65	275	225	34	22	56	23	165	35.5	69.5	M20	6.4
UKFL215 HA2315	2-7/16		275	225	34	22	56	23	165	35.5	69.5	M20	6.4
UKFL215 HE2315	2-1/2		275	225	34	22	56	23	165	35.5	69.5	M20	6.4
UKFL216 H2316		70	290	233	34	22	58	25	180	39	73	M22	8
UKFL216 HA2316	2-11/16		290	233	34	22	58	25	180	39	73	M22	8
UKFL216 HE2316	2-3/4		290	233	34	22	58	25	180	39	73	M22	8

Unit No.	Shaft Dia		Dimensions (mm)										Bolt Size		Weight
	d		H	J	A2	A1	A	N	L	B	s	z	(mm)	(in)	(kg)
	(in)	(mm)	H	J	A2	A1	A	N	L	B	s	z	(mm)	(in)	(kg)
UCFLX05		25	141	117	18	13	30	12	83	38.1	15.9	40.2	M14	3/8	1
UCFLX05-13	13/16		141	117	18	13	30	12	83	38.1	15.9	40.2	M14	3/8	1
UCFLX05-14	7/8		141	117	18	13	30	12	83	38.1	15.9	40.2	M14	3/8	1
UCFLX05-15	15/16		141	117	18	13	30	12	83	38.1	15.9	40.2	M14	3/8	1
UCFLX05-16	1		141	117	18	13	30	12	83	38.1	15.9	40.2	M14	3/8	1
UCFLX06		30	156	130	19	15	34	16	95	42.9	17.5	44.4	M14	1/2	1.5
UCFLX06-17	1-1/16		156	130	19	15	34	16	95	42.9	17.5	44.4	M14	1/2	1.5
UCFLX06-18	1-1/8		156	130	19	15	34	16	95	42.9	17.5	44.4	M14	1/2	1.5
UCFLX06-19	1-3/16		156	130	19	15	34	16	95	42.9	17.5	44.4	M14	1/2	1.5
UCFLX06-20	1-1/4		156	130	19	15	34	16	95	42.9	17.5	44.4	M14	1/2	1.5
UCFLX07		35	171	144	21	16	38	16	105	49.2	19	51.2	M14	1/2	2
UCFLX07-21	1-5/16		171	144	21	16	38	16	105	49.2	19	51.2	M14	1/2	2
UCFLX07-22	1-3/8		171	144	21	16	38	16	105	49.2	19	51.2	M14	1/2	2
UCFLX07-23	1-7/16		171	144	21	16	38	16	105	49.2	19	51.2	M14	1/2	2
UCFLX08		40	179	148	22	16	40	16	111	49.2	19	52.2	M14	1/2	2.2
UCFLX08-24	1-1/2		179	148	22	16	40	16	111	49.2	19	52.2	M14	1/2	2.2
UCFLX08-25	1-9/16		179	148	22	16	40	16	111	49.2	19	52.2	M14	1/2	2.2
UCFLX09		45	189	157	23	16	40	16	116	51.6	19	55.6	M16	1/2	2.4
UCFLX09-26	1-5/8		189	157	23	16	40	16	116	51.6	19	55.6	M16	1/2	2.4
UCFLX09-27	1-11/16		189	157	23	16	40	16	116	51.6	19	55.6	M16	1/2	2.4
UCFLX09-28	1-3/4		189	157	23	16	40	16	116	51.6	19	55.6	M16	1/2	2.4
UCFLX09-29	1-13/16		189	157	23	16	40	16	116	51.6	19	55.6	M16	1/2	2.4
UCFLX10		50	216	184	26	18	44	19	133	55.6	22.2	59.4	M16	5/8	3.4
UCFLX10-30	1-7/8		216	184	26	18	44	19	133	55.6	22.2	59.4	M16	5/8	3.4
UCFLX10-31	1-15/16		216	184	26	18	44	19	133	55.6	22.2	59.4	M16	5/8	3.4
UCFLX10-32	2		216	184	26	18	44	19	133	55.6	22.2	59.4	M16	5/8	3.4

Unit No.	Shaft Dia	Dimensions(mm)										Bolt size (mm)	Weight (kg)
Unit No.	Shaft Dia	H	J	A2	A1	A	N	L	B	s	Z	Bolt size (mm)	Weight (kg)
UCFL305	25	150	113	16	13	29	19	80	38	15	39	M16	1.1
UCFL306	30	180	134	18	15	32	23	90	43	17	44	M20	1.6
UCFL307	35	185	141	20	16	36	23	100	48	19	49	M20	2
UCFL308	40	200	158	23	17	40	23	112	52	19	56	M20	2.6
UCFL309	45	230	177	25	18	44	25	125	57	22	60	M22	3.63
UCFL310	50	240	187	28	19	48	25	140	61	22	67	M22	4.6
UCFL311	55	250	198	30	20	52	25	150	66	25	71	M22	5.3
UCFL312	60	270	212	33	22	56	31	160	71	26	78	M27	6.4
UCFL313	65	295	240	33	25	58	31	175	75	30	78	M27	8.2
UCFL314	70	315	250	36	28	61	35	185	78	33	81	M30	10
UCFL315	75	320	260	39	30	66	35	195	82	32	89	M30	11
UCFL316	80	355	285	38	32	68	38	210	86	34	90	M33	14.3
UCFL317	85	370	300	44	32	74	38	220	96	40	100	M33	16.2
UCFL318	90	385	315	44	36	76	38	235	96	40	100	M33	19.2
UCFL319	95	405	330	59	40	94	41	250	103	41	121	M36	21.8
UCFL320	100	440	360	59	40	94	44	270	108	42	125	M39	26.5
UCFL321	105	440	360	59	40	94	44	270	112	44	127	M39	28.2
UCFL322	110	470	390	60	42	96	44	300	117	46	131	M39	33.1
UCFL324	120	520	430	65	48	110	47	330	126	51	140	M42	45.7
UCFL326	130	550	460	65	50	115	47	360	135	54	146	M42	57.5
UCFL328	140	600	500	75	60	125	51	400	145	59	161	M45	79.7

Unit No.	Shaft Dia		Dimensions (mm)										Bolt Size (mm)	Weight
	d		H	J	L	A2	A1	A	N	B1	S	Z		(kg)
	(in)	(mm)	H	J	L	A2	A1	A	N	B1	S	Z		(kg)
NAFLU201S		12	99	76.5	57	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFLU201-8S	1/2		99	76.5	57	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFLU202S		15	99	76.5	57	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFLU202-10S	5/8		99	76.5	57	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFLU203S		17	99	76.5	57	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFLU203-11S	11/16		99	76.5	57	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFLU201		12	112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU201-8	1/2		112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU202		15	112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU202-10	5/8		112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU203		17	112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU203-11	11/16		112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU204		20	112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU204-12	3/4		112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU205		25	123	99	70	19	15	30	11.5	44.4	17.4	45.9	M10	0.8
NAFLU205-14	7/8		123	99	70	19	15	30	11.5	44.4	17.4	45.9	M10	0.8
NAFLU205-15	15/16		123	99	70	19	15	30	11.5	44.4	17.4	45.9	M10	0.8
NAFLU205-16	1		123	99	70	19	15	30	11.5	44.4	17.4	45.9	M10	0.8
NAFLU206		30	142	116.5	82	20	13	32.5	11.5	48.4	18.2	50.1	M10	1.2
NAFLU206-18	1-1/8		142	116.5	82	20	13	32.5	11.5	48.4	18.2	50.1	M10	1.2
NAFLU206-19	1-3/16		142	116.5	82	20	13	32.5	11.5	48.4	18.2	50.1	M10	1.2
NAFLU206-20	1-1/4		142	116.5	82	20	13	32.5	11.5	48.4	18.2	50.1	M10	1.2
NAFLU207		35	158	130	94	21	17	36	14	51.1	18.8	53.3	M12	1.6
NAFLU207-20	1-1/4		158	130	94	21	17	36	14	51.1	18.8	53.3	M12	1.6
NAFLU207-21	1-5/16		158	130	94	21	17	36	14	51.1	18.8	53.3	M12	1.6
NAFLU207-22	1-3/16		158	130	94	21	17	36	14	51.1	18.8	53.3	M12	1.6
NAFLU207-23	1-7/16		158	130	94	21	17	36	14	51.1	18.8	53.3	M12	1.6
NAFLU208		40	172	143.5	103	24	17	39	14	56.3	21.4	58.9	M12	1.9
NAFLU208-24	1-1/2		172	143.5	103	24	17	39	14	56.3	21.4	58.9	M12	1.9
NAFLU208-25	1-9/16		172	143.5	103	24	17	39	14	56.3	21.4	58.9	M12	1.9
NAFLU209		45	180	148.5	108	24	18	40	16	56.3	21.4	58.9	M14	2.3
NAFLU209-26	1-5/8		180	148.5	108	24	18	40	16	56.3	21.4	58.9	M14	2.3
NAFLU209-27	1-11/16		180	148.5	108	24	18	40	16	56.3	21.4	58.9	M14	2.3
NAFLU209-28	1-3/4		180	148.5	108	24	18	40	16	56.3	21.4	58.9	M14	2.3
NAFLU210		50	190	157	114	28	20	45	18	62.7	24.6	66.1	M16	2.6
NAFLU210-30	1-7/8		190	157	114	28	20	45	18	62.7	24.6	66.1	M16	2.6
NAFLU210-31	1-15/16		190	157	114	28	20	45	18	62.7	24.6	66.1	M16	2.6
NAFLU210-32	2		190	157	114	28	20	45	18	62.7	24.6	66.1	M16	2.6
NAFLU211		55	217	184	128	31	21	48	18	71.4	27.7	74.6	M16	3.8
NAFLU211-32	2		217	184	128	31	21	48	18	71.4	27.7	74.6	M16	3.8
NAFLU211-34	2-1/8		217	184	128	31	21	48	18	71.4	27.7	74.6	M16	3.8
NAFLU211-35	2-3/16		217	184	128	31	21	48	18	71.4	27.7	74.6	M16	3.8
NAFLU212		60	237	202	138	34	21	53	18	77.8	30.9	80.8	M16	4.8
NAFLU212-36	2-1/4		237	202	138	34	21	53	18	77.8	30.9	80.8	M16	4.8
NAFLU212-38	2-3/8		237	202	138	34	21	53	18	77.8	30.9	80.8	M16	4.8
NAFLU212-39	2-7/16		237	202	138	34	21	53	18	77.8	30.9	80.8	M16	4.8
NAFLU213		65	256	210	152	38	22	56	21	85.7	34.1	89.6	M18	6
NAFLU213-40	2-1/2		256	210	152	38	22	56	21	85.7	34.1	89.6	M18	6
NAFLU214		70	264	216	157	38	23	58	21	85.7	34.1	89.6	M18	6.3
NAFLU214-44	2-3/4		264	216	157	38	23	58	21	85.7	34.1	89.6	M18	6.3
NAFLU215		75	275	225	164	41	24	62	21	92.1	37.3	95.8	M18	7.2
NAFLU215-47	2-15/16		275	225	164	41	24	62	21	92.1	37.3	95.8	M18	7.2
NAFLU215-48	3		275	225	164	41	24	62	21	92.1	37.3	95.8	M18	7.2

Unit No.	Shaft Dia		Dimensions (mm)										Boit Size (mm)	Weight (kg)
	d		H	J	A2	A1	A	N	L	B	s	z
	(in)	(mm)	H	J	A2	A1	A	N	L	B	s	z
UCFT201		12	99	76.2	15.1	11	25	10.5	54	27.4	11.5	31	M8	0.4
UCFT201-8	1/2		99	76.2	15.1	11	25	10.5	54	27.4	11.5	31	M8	0.4
UCFT202		15	99	76.2	15.1	11	25	10.5	54	27.4	11.5	31	M8	0.4
UCFT202-9	9/16		99	76.2	15.1	11	25	10.5	54	27.4	11.5	31	M8	0.4
UCFT202-10	5/8		99	76.2	15.1	11	25	10.5	54	27.4	11.5	31	M8	0.4
UCFT203		17	99	76.2	15.1	11	25	10.5	54	27.4	11.5	31	M8	0.4
UCFT203-11	11/16		99	76.2	15.1	11	25	10.5	54	27.4	11.5	31	M8	0.4
UCFT204		20	112	89.7	14.3	11	25	10.5	60	31	12.7	32.6	M8	0.45
UCFT204-12	3/4		112	89.7	14.3	11	25	10.5	60	31	12.7	32.6	M8	0.45
UCFT205		25	124	98.8	15.9	13	27	12.5	70	34.1	14.3	35.6	M10	0.66
UCFT205-13	13/16		124	98.8	15.9	13	27	12.5	70	34.1	14.3	35.6	M10	0.66
UCFT205-14	7/8		124	98.8	15.9	13	27	12.5	70	34.1	14.3	35.6	M10	0.66
UCFT205-15	15/16		124	98.8	15.9	13	27	12.5	70	34.1	14.3	35.6	M10	0.66
UCFT205-16	1		124	98.8	15.9	13	27	12.5	70	34.1	14.3	35.6	M10	0.66
UCFT206		30	141	116.7	17.9	13	30	12.5	83	38.1	15.9	40.1	M10	0.86
UCFT206-17	1-1/16		141	116.7	17.9	13	30	12.5	83	38.1	15.9	40.1	M10	0.86
UCFT206-18	1-1/8		141	116.7	17.9	13	30	12.5	83	38.1	15.9	40.1	M10	0.86
UCFT206-19	1-3/16		141	116.7	17.9	13	30	12.5	83	38.1	15.9	40.1	M10	0.86
UCFT206-20	1-1/4		141	116.7	17.9	13	30	12.5	83	38.1	15.9	40.1	M10	0.86
UCFT207		35	156	130.2	19.1	14	34	14	95	42.9	17.5	44.5	M12	1.31
UCFT207-20	1-1/4		156	130.2	19.1	14	34	14	95	42.9	17.5	44.5	M12	1.31
UCFT207-21	1-5/6		156	130.2	19.1	14	34	14	95	42.9	17.5	44.5	M12	1.31
UCFT207-22	1-3/8		156	130.2	19.1	14	34	14	95	42.9	17.5	44.5	M12	1.31
UCFT207-23	1-7/16		156	130.2	19.1	14	34	14	95	42.9	17.5	44.5	M12	1.31
UCFT208		40	171	143.7	21	14	38	14	105	49.2	19	51.2	M12	1.53
UCFT208-24	1-1/2		171	143.7	21	14	38	14	105	49.2	19	51.2	M12	1.53
UCFT208-25	1-9/16		171	143.7	21	14	38	14	105	49.2	19	51.2	M12	1.53
UCFT209		45	179	148.4	21.8	14	40	16	111	49.2	19	52	M14	1.73
UCFT209-26	1-5/8		179	148.4	21.8	14	40	16	111	49.2	19	52	M14	1.73
UCFT209-27	1-11/16		179	148.4	21.8	14	40	16	111	49.2	19	52	M14	1.73
UCFT209-28	1-3/4		179	148.4	21.8	14	40	16	111	49.2	19	52	M14	1.73
UCFT210		50	189	157.2	22.2	14	40	16	116	51.6	19	54.8	M14	2.28
UCFT210-29	1-13/16		189	157.2	22.2	14	40	16	116	51.6	19	54.8	M14	2.28
UCFT210-30	1-7/8		189	157.2	22.2	14	40	16	116	51.6	19	54.8	M14	2.28
UCFT210-31	1-15/16		189	157.2	22.2	14	40	16	116	51.6	19	54.8	M14	2.28
UCFT210-32	2		189	157.2	22.2	14	40	16	116	51.6	19	54.8	M14	2.28
UCFT211		55	216	184.2	25.4	21	44	18	133	55.6	22.2	58.8	M16	2.72
UCFT211-32	2		216	184.2	25.4	21	44	18	133	55.6	22.2	58.8	M16	2.72
UCFT211-33	2-1/16		216	184.2	25.4	21	44	18	133	55.6	22.2	58.8	M16	2.72
UCFT211-34	2-1/8		216	184.2	25.4	21	44	18	133	55.6	22.2	58.8	M16	2.72
UCFT211-35	2-3/16		216	184.2	25.4	21	44	18	133	55.6	22.2	58.8	M16	2.72

Unit No.	Shaft Dia		Dimensions (mm)										Boit Size (mm)	Weight (kg)
	d		H	J	A2	A1	A	N	L	B1	S	Z
	(in)	(mm)	H	J	A2	A1	A	N	L	B1	S	Z
UEFT204		20	112	89.7	14.3	11	25	10.5	60	33	12.7	34.6	M8	0.51
UEFT204-12	3/4		112	89.7	14.3	11	25	10.5	60	33	12.7	34.6	M8	0.51
UEFT205		25	124	98.8	15.9	13	27	12.5	70	35.4	14.3	36.9	M10	0.72
UEFT205-13	13/16		124	98.8	15.9	13	27	12.5	70	35.4	14.3	36.9	M10	0.72
UEFT205-14	7/8		124	98.8	15.9	13	27	12.5	70	35.4	14.3	36.9	M10	0.72
UEFT205-15	15/16		124	98.8	15.9	13	27	12.5	70	35.4	14.3	36.9	M10	0.72
UEFT205-16	1		124	98.8	15.9	13	27	12.5	70	35.4	14.3	36.9	M10	0.72
UEFT206		30	141	116.7	17.9	13	30	12.5	83	39.8	15.9	41.8	M10	1.04
UEFT206-17	1-1/16		141	116.7	17.9	13	30	12.5	83	39.8	15.9	41.8	M10	1.04
UEFT206-18	1-1/8		141	116.7	17.9	13	30	12.5	83	39.8	15.9	41.8	M10	1.04
UEFT206-19	1-3/16		141	116.7	17.9	13	30	12.5	83	39.8	15.9	41.8	M10	1.04
UEFT206-20	1-1/4		141	116.7	17.9	13	30	12.5	83	39.8	15.9	41.8	M10	1.04
UEFT207		35	156	130.2	19.1	14	34	14	95	43.9	17.5	45.5	M12	1.48
UEFT207-20	1-1/4		156	130.2	19.1	14	34	14	95	43.9	17.5	45.5	M12	1.48
UEFT207-21	1-5/6		156	130.2	19.1	14	34	14	95	43.9	17.5	45.5	M12	1.48
UEFT207-22	1-3/8		156	130.2	19.1	14	34	14	95	43.9	17.5	45.5	M12	1.48
UEFT207-23	1-7/16		156	130.2	19.1	14	34	14	95	43.9	17.5	45.5	M12	1.48
UEFT208		40	171	143.7	21	14	38	14	105	50.2	19	52.2	M12	1.86
UEFT208-24	1-1/2		171	143.7	21	14	38	14	105	50.2	19	52.2	M12	1.86
UEFT208-25	1-9/16		171	143.7	21	14	38	14	105	50.2	19	52.2	M12	1.86
UEFT209		45	179	148.4	21.8	14	40	16	111	50.2	19	53	M14	2.14
UEFT209-26	1-5/8		179	148.4	21.8	14	40	16	111	50.2	19	53	M14	2.14
UEFT209-27	1-11/16		179	148.4	21.8	14	40	16	111	50.2	19	53	M14	2.14
UEFT209-28	1-3/4		179	148.4	21.8	14	40	16	111	50.2	19	53	M14	2.14
UEFT210		50	189	157.2	22.2	14	40	16	116	52.6	19	55.8	M14	2.26
UEFT210-29	1-13/16		189	157.2	22.2	14	40	16	116	52.6	19	55.8	M14	2.26
UEFT210-30	1-7/8		189	157.2	22.2	14	40	16	116	52.6	19	55.8	M14	2.26
UEFT210-31	1-15/16		189	157.2	22.2	14	40	16	116	52.6	19	55.8	M14	2.26
UEFT210-32	2		189	157.2	22.2	14	40	16	116	52.6	19	55.8	M14	2.26
UEFT211		55	216	184.2	25.4	21	44	18	133	56.6	22.2	59.8	M16	3.31
UEFT211-32	2		216	184.2	25.4	21	44	18	133	56.6	22.2	59.8	M16	3.31
UEFT211-33	2-1/16		216	184.2	25.4	21	44	18	133	56.6	22.2	59.8	M16	3.31
UEFT211-34	2-1/8		216	184.2	25.4	21	44	18	133	56.6	22.2	59.8	M16	3.31
UEFT211-35	2-3/16		216	184.2	25.4	21	44	18	133	56.6	22.2	59.8	M16	3.31

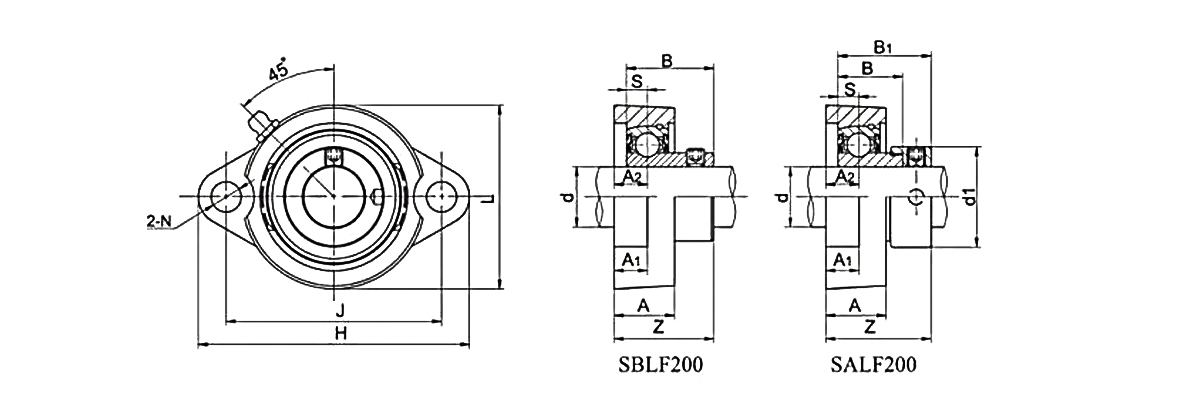

Unit No.	Shaft Dia		Dimensions(mm)										Bolt Size (mm)	Weight
	d		H	J	A2	A1	A	N	L	B	s	z		(kg)
	(in)	(mm)	H	J	A2	A1	A	N	L	B	s	z		(kg)
SBLF201		12	81	63.5	9.5	9.5	18	8	56	22	6	25.5	M6	0.27
SBLF201-8	1/2		81	63.5	9.5	9.5	18	8	56	22	6	25.5	M6	0.27
SBLF202		15	81	63.5	9.5	9.5	18	8	56	22	6	25.5	M6	0.25
SBLF202-9	9/16		81	63.5	9.5	9.5	18	8	56	22	6	25.5	M6	0.25
SBLF202-10	5/8		81	63.5	9.5	9.5	18	8	56	22	6	25.5	M6	0.25
SBLF203		17	81	63.5	9.5	9.5	18	8	56	22	6	25.5	M6	0.25
SBLF203-11	11/16		81	63.5	9.5	9.5	18	8	56	22	6	25.5	M6	0.25
SBLF204		20	90	71.5	11	11	20	10	61	25	7	29	M8	0.33
SBLF204-12	3/4		90	71.5	11	11	20	10	61	25	7	29	M8	0.33
SBLF205		25	95	76	11	11	20	10	64	27	7.5	30.5	M8	0.38
SBLF205-14	7/8		95	76	11	11	20	10	64	27	7.5	30.5	M8	0.38
SBLF205-15	15/16		95	76	11	11	20	10	64	27	7.5	30.5	M8	0.38
SBLF205-16	1		95	76	11	11	20	10	64	27	7.5	30.5	M8	0.38
SBLF206		30	113	90.5	12	12	22.5	12	76	30	8	34	M10	0.56
SBLF206-17	1-11/16		113	90.5	12	12	22.5	12	76	30	8	34	M10	0.56
SBLF206-18	1-1/8		113	90.5	12	12	22.5	12	76	30	8	34	M10	0.56
SBLF206-19	1-3/16		113	90.5	12	12	22.5	12	76	30	8	34	M10	0.56
SBLF206-20	1-1/4		113	90.5	12	12	22.5	12	76	30	8	34	M10	0.56
SBLF207		35	122	100	13	13	24	12	89	32	8.5	36.5	M10	0.8
SBLF207-20	1-1/4		122	100	13	13	24	12	89	32	8.5	36.5	M10	0.8
SBLF207-21	1-5/16		122	100	13	13	24	12	89	32	8.5	36.5	M10	0.8
SBLF207-22	1-3/8		122	100	13	13	24	12	89	32	8.5	36.5	M10	0.8
SBLF207-23	1-7/16		122	100	13	13	24	12	89	32	8.5	36.5	M10	0.8
SBLF208		40	150	119	13.5	13	25	14	106	34	9	38.5	M12	1.48
SBLF208-24	1-1/2		150	119	13.5	13	25	14	106	34	9	38.5	M12	1.48
SBLF208-25	1-9/16		150	119	13.5	13	25	14	106	34	9	38.5	M12	1.48

Unit No.	Shaft Dia		Dimensions(mm)												Bolt Size (mm)	Weight (kg)
	d		H	J	A2	A1	A	N	L	B1	B	s	Z	d1
	(in)	(mm)	H	J	A2	A1	A	N	L	B1	B	s	Z	d1
SALF201		12	81	63.5	9.5	9.5	18	8	56	28.6	19.1	6	32.1	28.6	M6	0.28
SALF201-8	1/2		81	63.5	9.5	9.5	18	8	56	28.6	19.1	6	32.1	28.6	M6	0.28
SALF202		15	81	63.5	9.5	9.5	18	8	56	28.6	19.1	6	32.1	28.6	MS	0.28
SALF202-9	9/16		81	63.5	9.5	9.5	18	8	56	28.6	19.1	6	32.1	28.6	MS	0.28
SALF202-10	5/8		81	63.5	9.5	9.5	18	8	56	28.6	19.1	6	32.1	28.6	MS	0.28
SALF203		17	81	63.5	9.5	9.5	18	8	56	28.6	19.1	6	32.1	28.6	M6	0.28
SALF203-11	11/16		81	63.5	9.5	9.5	18	8	56	28.6	19.1	6	32.1	28.6	M6	0.28
SALF204		20	90	71.5	11	11	20	10	61	31	21.5	7	35	33.3	M8	0.33
SALF204-12	3/4		90	71.5	11	11	20	10	61	31	21.5	7	35	33.3	M8	0.33
SALF205		25	95	76	11	11	20	10	64	31.5	22	7.5	35	38.1	M8	0.42
SALF205-14	7/8		95	76	11	11	20	10	64	31.5	22	7.5	35	38.1	M8	0.42
SALF205-15	15/16		95	76	11	11	20	10	64	31.5	22	7.5	35	38.1	M8	0.42
SALF205-16	1		95	76	11	11	20	10	64	31.5	22	7.5	35	38.1	M8	0.42
SALF206		30	113	90.5	12	12	22.5	12	76	35.7	23.8	8	39.7	44.5	M10	0.6
SALF206-17	1-11/16		113	90.5	12	12	22.5	12	76	35.7	23.8	8	39.7	44.5	M10	0.6
SALF206-18	1-1/8		113	90.5	12	12	22.5	12	76	35.7	23.8	8	39.7	44.5	M10	0.6
SALF206-19	1-3/16		113	90.5	12	12	22.5	12	76	35.7	23.8	8	39.7	44.5	M10	0.6
SALF206-20	1-1/4		113	90.5	12	12	22.5	12	76	35.7	23.8	8	39.7	44.5	M10	0.6
SALF207		35	122	100	13	13	24	12	89	38.9	25.4	8.5	43.4	55.6	M10	0.85
SALF207-20	1-1/4		122	100	13	13	24	12	89	38.9	25.4	8.5	43.4	55.6	M10	0.85
SALF207-21	1-5/16		122	100	13	13	24	12	89	38.9	25.4	8.5	43.4	55.6	M10	0.85
SALF207-22	1-3/8		122	100	13	13	24	12	89	38.9	25.4	8.5	43.4	55.6	M10	0.85
SALF207-23	1-7/16		122	100	13	13	24	12	89	38.9	25.4	8.5	43.4	55.6	M10	0.85
SALF208		40	150	119	13.5	13	25	14	106	43.7	30.2	9	48.2	60.3	M12	1.48
SALF208-24	1-1/2		150	119	13.5	13	25	14	106	43.7	30.2	9	48.2	60.3	M12	1.48
SALF208-25	1-9/16		150	119	13.5	13	25	14	106	43.7	30.2	9	48.2	60.3	M12	1.48

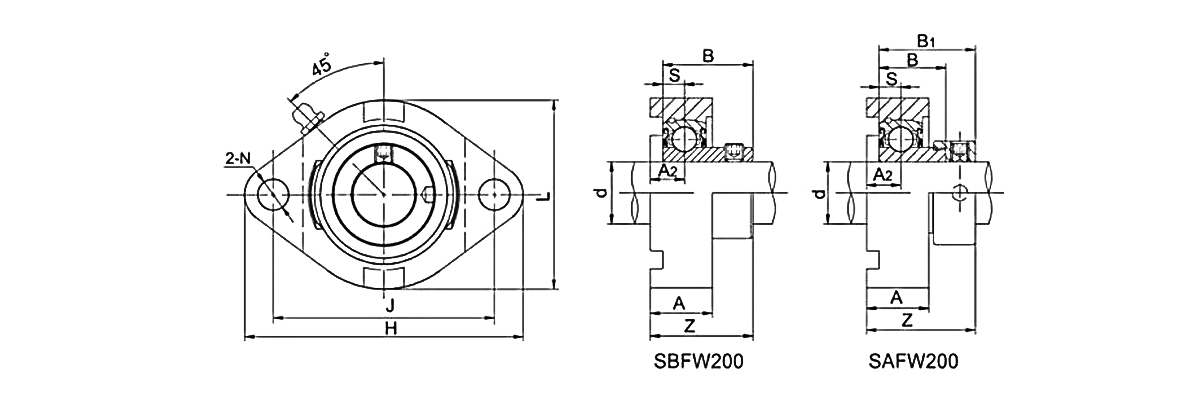

Unit No.	Shaft Dia		Dimensions) mm)									Bolt Size (mm)	Weight (kg)
	d		H	J	A2	A	N	L	B	S	z
	(in)	(mm)	H	J	A2	A	N	L	B	S	z
SBFW201		12	81	63.5	8.5	15	7	59	22	6	24.5	M6	0.28
SBFW201-8	1/2		81	63.5	8.5	15	7	59	22	6	24.5	M6	0.28
SBFW202		15	81	63.5	8.5	15	7	59	22	6	24.5	M6	0.27
SBFW202-9	9/16		81	63.5	8.5	15	7	59	22	6	24.5	M6	0.27
SBFW202-10	5/8		81	63.5	8.5	15	7	59	22	6	24.5	M6	0.27
SBFW203		17	81	63.5	8.5	15	7	59	22	6	24.5	M6	0.26
SBFW203-11	11/16		81	63.5	8.5	15	7	59	22	6	24.5	M6	0.26
SBFW204		20	90	71	9.5	17	9	67	25	7	27.5	M8	0.37
SBFW204-12	3/4		90	71	9.5	17	9	67	25	7	27.5	M8	0.37
SBFW205		25	95	76	9.5	17.5	9	71	27	7.5	29	M8	0.44
SBFW205-14	7/8		95	76	9.5	17.5	9	71	27	7.5	29	M8	0.44
SBFW205-15	15/16		95	76	9.5	17.5	9	71	27	7.5	29	M8	0.44
SBFW205-16	1		95	76	9.5	17.5	9	71	27	7.5	29	M8	0.44
SBFW206		30	113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFW206-17	1-1/16		113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFW206-18	1-1/8		113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFW206-19	1-3/16		113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFW206-20	1-1/4		113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFW207		35	125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFW207-20	1-1/4		125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFW207-21	1-5/16		125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFW207-22	1-3/8		125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFW207-23	1-7/16		125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFW208		40	148	119	14.5	25	13.5	104	34	9	39.9	M12	1.2
SBFW208-24	1-1/2		148	119	14.5	25	13.5	104	34	9	39.9	M12	1.2
SBFW208-25	1-9/16		148	119	14.5	25	13.5	104	34	9	39.9	M12	1.2

Unit No.	Shaft Dia		Dimensions(mm)										Bolt Size (mm)	Weight (kg)
	d		H	J	A2	A	N	L	B1	B	S	Z
	(in)	(mm)	H	J	A2	A	N	L	B1	B	S	Z
SAFW201		12	81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.28
SAFW201-8	1/2		81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.28
SAFW202		15	81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.27
SAFW202-9	9/16		81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.27
SAFW202-10	5/8		81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.27
SAFW203		17	81	63.5	8.5	15	7	59	28.6	22	6	31.1	M6	0.26
SAFW203-11	11/16		81	63.5	8.5	15	7	59	28.6	22	6	31.1	M6	0.26
SAFW204		20	90	71	9.5	17	9	67	31	21.5	7	33.5	M8	0.37
SAFW204-12	3/4		90	71	9.5	17	9	67	31	21.5	7	33.5	M8	0.37
SAFW205		25	95	76	9.5	17.5	9	71	31.5	22	7.5	33.5	M8	0.44
SAFW205-14	7/8		95	76	9.5	17.5	9	71	31.5	22	7.5	33.5	M8	0.44
SAFW205-15	15/16		95	76	9.5	17.5	9	71	31.5	22	7.5	33.5	M8	0.44
SAFW205-16	1		95	76	9.5	17.5	9	71	31.5	22	7.5	33.5	M8	0.44
SAFW206		30	113	90	12	20.5	12	84	35.7	23.8	8	39.7	M10	0.7
SAFW206-17	1-1/16		113	90	12	20.5	12	84	35.7	23.8	8	39.7	M10	0.7
SAFW206-18	1-1/8		113	90	12	20.5	12	84	35.7	23.8	8	39.7	M10	0.7
SAFW206-19	1-3/16		113	90	12	20.5	12	84	35.7	23.8	8	39.7	M10	0.7
SAFW206-20	1-1/4		113	90	12	20.5	12	84	35.7	23.8	8	39.7	M10	0.7
SAFW207		35	125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFW207-20	1-1/4		125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFW207-21	1-5/16		125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFW207-22	1-3/8		125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFW207-23	1-7/16		125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFW208		40	148	119	14.5	25	13.5	104	43.7	30.2	9	49.2	M12	1.2
SAFW208-24	1-1/2		148	119	14.5	25	13.5	104	43.7	30.2	9	49.2	M12	1.2
SAFW208-25	1-9/16		148	119	14.5	25	13.5	104	43.7	30.2	9	49.2	M12	1.2

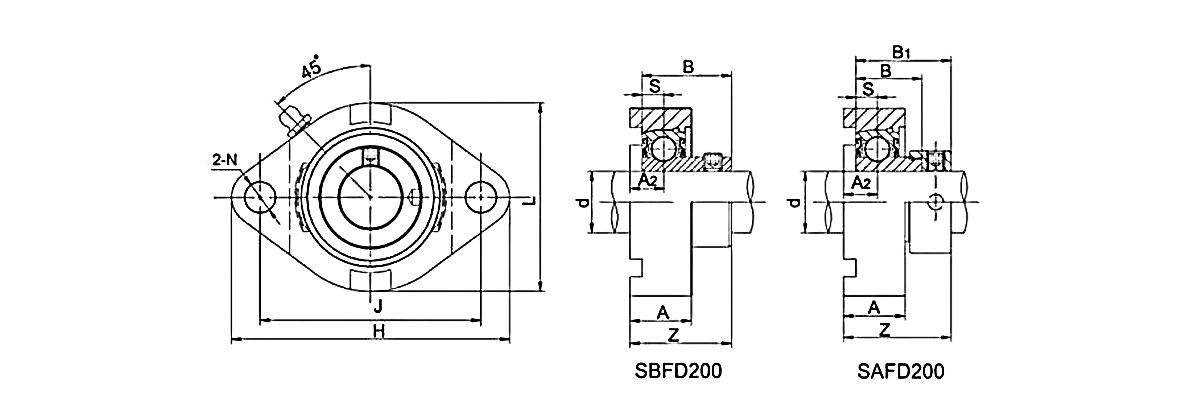

Unit No.	Shaft Dia		Dimensions(mm)									Bolt Size (mm)	Weight (kg)
	d		H	J	A2	A	N	L	B	S	z
	(in)	(mm)	H	J	A2	A	N	L	B	S	z
SBFD201		12	81	63.5	8.5	15	7	59	22	6	24.5	M6	0.28
SBFD201-8	1/2		81	63.5	8.5	15	7	59	22	6	24.5	M6	0.28
SBFD202		15	81	63.5	8.5	15	7	59	22	6	24.5	M6	0.27
SBFD202-9	9/16		81	63.5	8.5	15	7	59	22	6	24.5	M6	0.27
SBFD202-10	5/8		81	63.5	8.5	15	7	59	22	6	24.5	M6	0.27
SBFD203		17	81	63.5	8.5	15	7	59	22	6	24.5	M6	0.26
SBFD203-11	11/16		81	63.5	8.5	15	7	59	22	6	24.5	M6	0.26
SBFD204		20	90	71	9.5	17	9	67	25	7	27.5	M8	0.37
SBFD204-12	3/4		90	71	9.5	17	9	67	25	7	27.5	M8	0.37
SBFD205		25	95	76	9.5	17.5	9	71	27	7.5	29	M8	0.44
SBFD205-14	7/8		95	76	9.5	17.5	9	71	27	7.5	29	M8	0.44
SBFD205-15	15/16		95	76	9.5	17.5	9	71	27	7.5	29	M8	0.44
SBFD205-16	1		95	76	9.5	17.5	9	71	27	7.5	29	M8	0.44
SBFD206		30	113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFD206-17	1-1/16		113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFD206-18	1-1/8		113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFD206-19	1-3/16		113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFD206-20	1-1/4		113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFD207		35	125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFD207-20	1-1/4		125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFD207-21	1-5/16		125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFD207-22	1-3/8		125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFD207-23	1-7/16		125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFD208		40	148	119	14.5	25	13.5	104	34	9	39.5	M12	1.2
SBFD208-24	1-1/2		148	119	14.5	25	13.5	104	34	9	39.5	M12	1.2
SBFD208-25	1-9/16		148	119	14.5	25	13.5	104	34	9	39.5	M12	1.2

Unit No.	Shaft Dia		Dimensions(mm)										Bolt Size (mm)	Weight (kg)
	d		H	J	A2	A	N	L	B1	B	S	Z
	(in)	(mm)	H	J	A2	A	N	L	B1	B	S	Z
SAFD201		12	81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.28
SAFD201-8	1/2		81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.28
SAFD202		15	81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.27
SAFD202-9	9/16		81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.27
SAFD202-10	5/8		81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.27
SAFD203		17	81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.26
SAFD203-11	11/16		81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.26
SAFD204		20	90	71	9.5	17	9	67	31	21.5	7	33.5	M8	0.37
SAFD204-12	3/4		90	71	9.5	17	9	67	31	21.5	7	33.5	M8	0.37
SAFD205		25	95	76	9.5	17.5	9	71	31.5	22	7.5	33.5	M8	0.44
SAFD205-14	7/8		95	76	9.5	17.5	9	71	31.5	22	7.5	33.5	M8	0.44
SAFD205-15	15/16		95	76	9.5	17.5	9	71	31.5	22	7.5	33.5	M8	0.44
SAFD205-16	1		95	76	9.5	17.5	9	71	31.5	22	7.5	33.5	M8	0.44
SAFD206		30	113	90	12	20.5	12	84	35.7	23.8	8	39.7	M10	0.7
SAFD206-17	1-1/16		113	90	12	20.5	12	84	35.7	23.8	8	39.7	M10	0.7
SAFD206-18	1-1/8		113	90	12	20.5	12	84	35.7	23.8	8	39.7	M10	0.7
SAFD206-19	1-3/16		113	90	12	20.5	12	84	35.7	23.8	8	39.7	M10	0.7
SAFD206-20	1-1/4		113	90	12	20.5	12	84	35.7	23.8	8	39.7	M10	0.7
SAFD207		35	125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFD207-20	1-1/4		125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFD207-21	1-5/16		125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFD207-22	1-3/8		125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFD207-23	1-7/16		125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFD208		40	148	119	14.5	25	13.5	104	43.7	30.2	9	49.2	M12	1.2
SAFD208-24	1-1/2		148	119	14.5	25	13.5	104	43.7	30.2	9	49.2	M12	1.2
SAFD208-25	1-9/16		148	119	14.5	25	13.5	104	43.7	30.2	9	49.2	M12	1.2

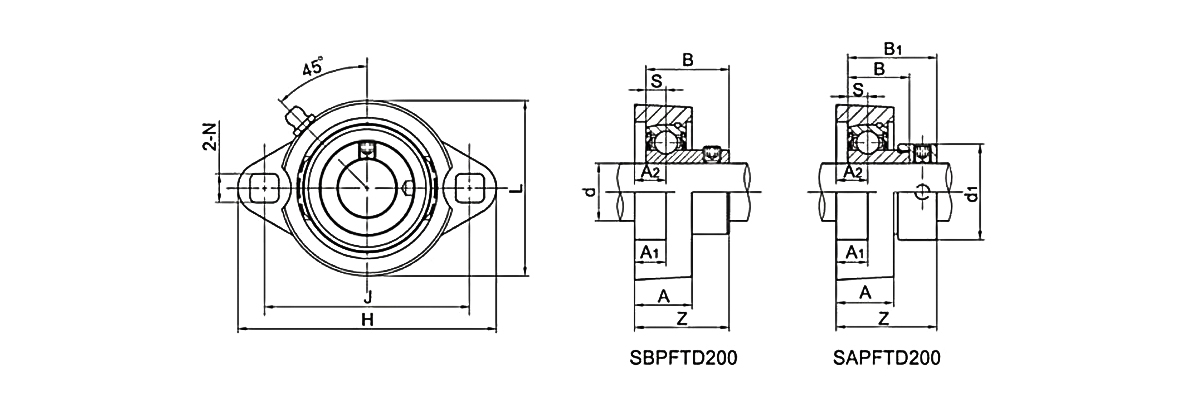

Unit No.	Shaft Dia		Dimensions (mm)										Bolt Size		Weight
	d		H	J	L	A2	A	A1	N	s	B	z	(mm)	(in)	(kg)
	(in)	(mm)	H	J	L	A2	A	A1	N	s	B	z	(mm)	(in)	(kg)
SBPFTD201		12	81	63.5	56	9	18	9	8.7	6	22	25	M8	5/16	0.23
SBPFTD201-8	1/2		81	63.5	56	9	18	9	8.7	6	22	25	M8	5/16	0.23
SBPFTD202		15	81	63.5	56	9	18	9	8.7	6	22	25	M8	5/16	0.23
SBPFTD202-10	5/8		81	63.5	56	9	18	9	8.7	6	22	25	M8	5/16	0.23
SBPFTD203		17	81	63.5	56	9	18	9	8.7	6	22	25	M8	5/16	0.23
SBPFTD203-11	11/16		81	63.5	56	9	18	9	8.7	6	22	25	M8	5/16	0.23
SBPFTD204-12		20	91	71.5	63	10.2	20	10.2	8.7	7	25	28.2	M8	5/16	0.27
SBPFTD204	3/4		91	71.5	63	10.2	20	10.2	8.7	7	25	28.2	M8	5/16	0.27
SBPFTD205-14	7/8		96	76.2	69	10.5	19	8.7	8.7	7.5	27	28.2	M8	5/16	0.38
SBPFTD205-15	15/16		96	76.2	69	10.5	19	8.7	8.7	7.5	27	28.2	M8	5/16	0.38
SBPFTD205		25	96	76.2	69	10.5	19	8.7	8.7	7.5	27	28.2	M8	5/16	0.38
SBPFTD205-16	1		96	76.2	69	10.5	19	8.7	8.7	7.5	27	28.2	M8	5/16	0.38
SBPFTD206-18	1-1/8		113	90.5	79	11.5	22	11.5	10.3	8	30	33.5	M10	3/8	0.54
SBPFTD206		30	113	90.5	79	11.5	22	11.5	10.3	8	30	33.5	M10	3/8	0.54
SBPFTD206-19	1-3/16		113	90.5	79	11.5	22	11.5	10.3	8	30	33.5	M10	3/8	0.54
SBPFTD206-20	1-1/4		113	90.5	79	11.5	22	11.5	10.3	8	30	33.5	M10	3/8	0.54
SBPFTD207-20	1-1/4		122.5	100	89	12.7	23.8	11.8	10.3	8.5	32	35.3	M10	3/8	0.71
SBPFTD207-21	1-5/16		122.5	100	89	12.7	23.8	11.8	10.3	8.5	32	35.3	M10	3/8	0.71
SBPFTD207-22	1-3/8		122.5	100	89	12.7	23.8	11.8	10.3	8.5	32	35.3	M10	3/8	0.71
SBPFTD207		35	122.5	100	89	12.7	23.8	11.8	10.3	8.5	32	35.3	M10	3/8	0.71
SBPFTD207-23	1-7/16		122.5	100	89	12.7	23.8	11.8	10.3	8.5	32	35.3	M10	3/8	0.71

Unit No.	Shaft Dia		Dimensions (mm)											Bolt Size		Weight (kg)
	d		H	J	L	A2	A	A1	N	s	B	B1	Z	(mm)	(in)
	(in)	(mm)	H	J	L	A2	A	A1	N	s	B	B1	Z	(mm)	(in)
SAPFTD201		12	81	63.5	56	9	18	9	8.7	6.5	19.1	28.6	31.1	M8	5/16	0.26
SAPFTD201-8	1/2		81	63.5	56	9	18	9	8.7	6.5	19.1	28.6	31.1	M8	5/16	0.26
SAPFTD202		15	81	63.5	56	9	18	9	8.7	6.5	19.1	28.6	31.1	M8	5/16	0.26
SAPFTD202-10	5/8		81	63.5	56	9	18	9	8.7	6.5	19.1	28.6	31.1	M8	5/16	0.26
SAPFTD203		17	81	63.5	56	9	18	9	8.7	6.5	19.1	28.6	31.1	M8	5/16	0.26
SAPFTD203-11	11/16		81	63.5	56	9	18	9	8.7	6.5	19.1	28.6	31.1	M8	5/16	0.26
SAPFTD204-12	3/4		91	71.5	63	10.2	20	10.2	8.7	7.5	21.5	31	33.6	M8	5/16	0.29
SAPFTD204		20	91	71.5	63	10.2	20	10.2	8.7	7.5	21.5	31	33.6	M8	5/16	0.29
SAPFTD205-14	7/8		96	76.2	69	10.5	19	8.7	8.7	7.5	22	31.5	32.1	M8	5/16	0.4
SAPFTD205-15	15/16		96	76.2	69	10.5	19	8.7	8.7	7.5	22	31.5	32.1	M8	5/16	0.4
SAPFTD205		25	96	76.2	69	10.5	19	8.7	8.7	7.5	22	31.5	32.1	M8	5/16	0.4
SAPFTD205-16	1		96	76.2	69	10.5	19	8.7	8.7	7.5	22	31.5	32.1	M8	5/16	0.4
SAPFTD206-18	1-1/8		113	90.5	79	11.5	22	11.5	10.3	9	23.8	35.7	38.2	M10	3/8	0.6
SAPFTD206		30	113	90.5	79	11.5	22	11.5	10.3	9	23.8	35.7	38.2	M10	3/8	0.6
SAPFTD206-19	1-3/16		113	90.5	79	11.5	22	11.5	10.3	9	23.8	35.7	38.2	M10	3/8	0.6
SAPFTD206-20	1-1/4		113	90.5	79	11.5	22	11.5	10.3	9	23.8	35.7	38.2	M10	3/8	0.6
SAPFTD207-20	1-1/4		122.5	100	89	12.7	23.8	11.8	10.3	9.5	25.4	38.9	41.2	M10	3/8	0.84
SAPFTD207-21	1-5/16		122.5	100	89	12.7	23.8	11.8	10.3	9.5	25.4	38.9	41.2	M10	3/8	0.84
SAPFTD207-22	1-3/8		122.5	100	89	12.7	23.8	11.8	10.3	9.5	25.4	38.9	41.2	M10	3/8	0.84
SAPFTD207		35	122.5	100	89	12.7	23.8	11.8	10.3	9.5	25.4	38.9	41.2	M10	3/8	0.84
SAPFTD207-23	1-7/16		122.5	100	89	12.7	23.8	11.8	10.3	9.5	25.4	38.9	41.2	M10	3/8	0.84

모션의 미래를 엔지니어링하다

UKL 소개

2020년에 설립된 UKL Bearing Manufacturing Co., Ltd. (Wuxi)는 중국 2 볼트 플랜지 베어링 공급업체 및 OEM/ODM 2 볼트 플랜지 베어링 회사로, 정밀 제조에 중점을 두고 연구개발, 생산, 판매를 결합한 통합 산업 및 무역 기업입니다.
이 회사는 고성능 베어링 솔루션을 전문으로 하며, 정밀성과 신뢰성에 대한 요구가 매우 높은 글로벌 산업에 기술 지원을 제공합니다.

200명 이상의 숙련된 전문가와 완전히 현대화된 생산 기반을 갖춘 UKL의 시설은 단조, 어닐링, 선삭, 열처리, 연삭 및 자동 조립에 이르는 전체 제조 공정을 포괄합니다.
15년 이상의 OEM/ODM 수출 경험을 활용하여 UKL는 고객 요구에 신속하게 대응하며 유럽, 아시아, 아프리카 및 중동의 고객에게 유연하고 맞춤화된 서비스를 제공합니다.

더 알아보기

0+

년

업계 경험
0+

모델 다양성
0+

직원 수
0

$

연간 수출액

명예 인증서

뉴스

2206 AV 베어링 씰: UKL의 기계류에 대한 최고의 보호
13 Aug, 2026
산업 운영에서 베어링 고장으로 인한 숨겨진 비용 광산 작업에서는 단일 베어링 고장으로 인해 예상치 못한 가동 중단 시간으로 인해 수천 달러의 비용이 발생할 수 있습니다. 농업 환경에서 수확기 동안 베어링에 오염 물질이 유입되면 가장 중요한 시기에 생산성이 저하됩니다. 건설 현장, 제조 시설, 중장비 운영 전반에 걸쳐 동일한 패턴이 반복...

더 읽기
로봇 관절 정밀도 및 컴팩트한 설계를 향상시키는 데 있어 RB2508 크로스 롤러 베어링의 중요한 역할
30 Jul, 2026
로봇 조인트 엔지니어링의 진화: 컴팩트한 정밀도를 향한 전환 산업용 로봇은 지난 10년 동안 엄청난 변화를 겪었습니다. 협업 로봇과 소형 로봇 팔로의 업계 전환은 제조 우선순위의 근본적인 변화를 반영합니다. 즉, 더 작은 설치 공간, 더 높은 탑재량 용량, 공간 제약 내에서 전례 없는 정밀도 등이 있습니다. 이러한 발전으로 인해 단일 ...

더 읽기
고정밀 응용 분야용 크로스 테이퍼 롤러 베어링에 대한 최고의 구매 가이드
23 Jul, 2026
현대 엔지니어링의 크로스 테이퍼 롤러 베어링 이해 크로스 테이퍼 롤러 베어링은 기계 공학의 중요한 발전을 나타내며 까다로운 산업 응용 분야에 전례 없는 정밀도와 하중 전달 기능을 제공합니다. 이러한 정교한 구성 요소는 크로스 롤러 베어링과 테이퍼형 설계의 장점을 결합하여 현대 기계의 복잡한 요구 사항을 해결하는 솔루션을 만듭니다. ...

더 읽기
SIZJ12 로드 엔드 베어링 선택 가이드: 까다로운 응용 분야에서 탁월한 이유
15 Jul, 2026
소개: 관절형 시스템의 엔지니어링 백본 기계 설계에서 로드 엔드 베어링만큼 매우 단순하면서도 매우 중요한 구성 요소는 거의 없습니다. 는 SIZJ12 베어링 높은 정하중을 관리하고 각도 정렬 불량을 수용하며 가혹한 산업 환경을 견딜 수 있도록 특별히 제작된 구형 플레인 베어링 개념의 세련된 진화를 나...

더 읽기
